Low cost valve control

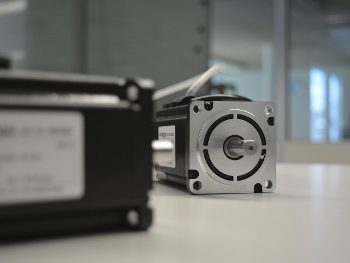

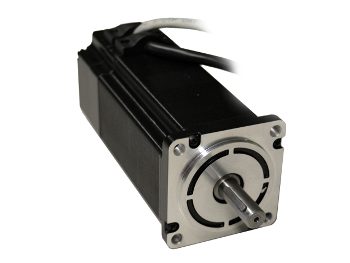

BLDC motor with integrated electronics

To control different valve positions, a cost-optimised solution with simple electronics for the operation of a brushless DC motor with 250W was required.

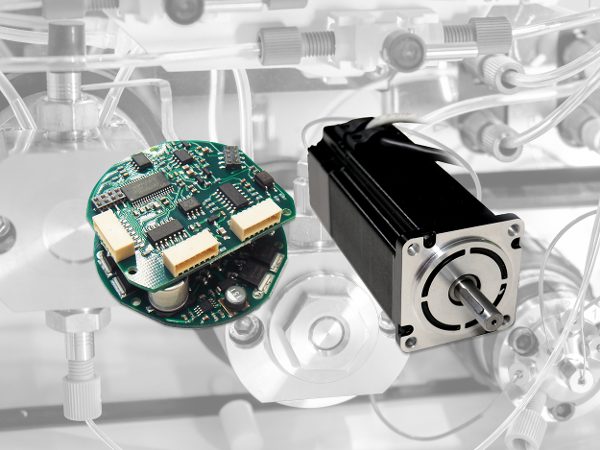

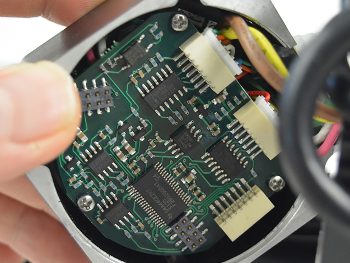

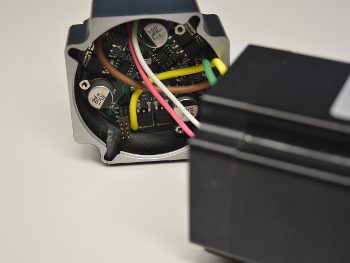

We integrated the electronics directly into the drive and placed the encoder on the PCB. The valve positions are simply controlled via I/O, and the end positions are monitored via the I/O signals.

Valve control
Projekt_Ventilsteuerung_Galerie
Projekt_Ventilsteuerung_Galerie
Projekt_Ventilsteuerung_Galerie
Projekt_Ventilsteuerung_Galerie
Projekt_Ventilsteuerung_Galerie
Keine Bilder vorhanden
Motion Control
Drive technology
Electronics
Production

System characteristics

Features

  • Customer-specific sequences programmable directly on the drive
  • Control of various analogue and digital inputs
  • Programmable current limitation
  • Temperature measurement

Power

  • Input 20-48V POWER
  • 250W power (peak 400W)
  • 12A (Peak 24A)

Feedback

  • SinCos encoder feedback integrated singleturn absolut encoder
  • 5x Digital Inputs / 3x Digital Outputs
  • 1x Analog Inputs


Dimensions:

  • Ø 54 x 18 mm
