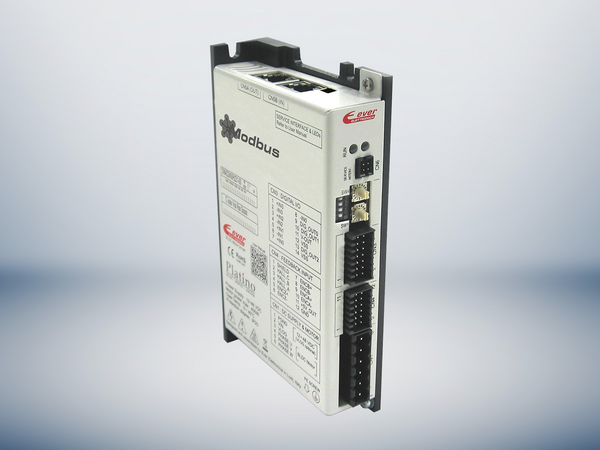

Controller for BLDC motors

Platino DW4D2400C2P1 to DW4D2400E221 series

Vector controllers from the Platino product range offer reliable and innovative control of three-phase brushless DC motors. Platino controllers provide silent operation of closed-loop motors using encoders and/or Hall effect sensors.

Features

  • for BLDC motors up to 400W
  • Supply voltage between 12-48VDC
  • up to 6 digital inputs
  • 3 digital outputs
  • Compact design
  • Integrated Arm Core M4 technology

Interfaces

  • EtherCat
  • Modbus
  • TCP
  • CANopen
  • Analog input

Supported feedback systems

  • Incremental encoders: 5V differential (RS422) or 5V single-ended (TTL/CMOS)
  • Hall-effect sensors: 5V single-ended (TTL/CMOS)

Accessories

  • Connector Kits
    • DW4D2KIT-C0 (for DW4D2400H221 & -E221)
    • DW4D2KIT-C1 (for DW4D2400C2P1 & -M2P1)
  • Software kits
    • DW4_SERV00-SL (including 200cm service cable)
