Magnetic Encoders | IGM Series

Magnetic encoders are to be preferred especially for applications where a robust design is required. The magnetic incremental encoder operates contactless and wear-free.

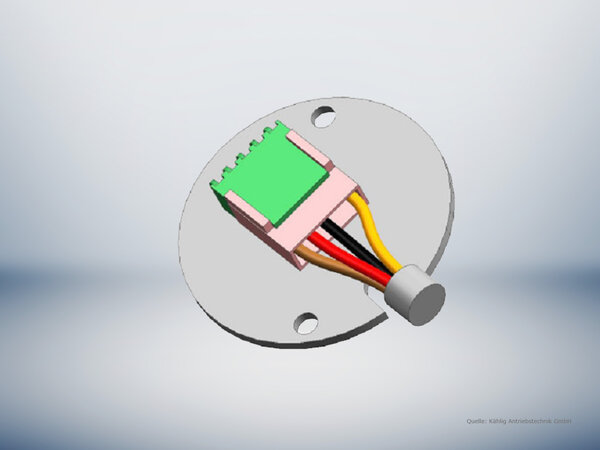

Encoders of the IGM series are equipped with Hall sensors and a permanent magnet pole wheel with alternating polarities. A 1-channel and a 2-channel version are available, each with a 90° phase shift. The output level depends on the supply voltage. The encoder's output is available either with a pull-up resistor or optionally with an open collector. In addition, extended protection circuits or an integrated version are possible.

Features

• Contactless and wear-free
• Voltage range from 5 to 24 VDC
• Open-collector output
• Integrated pull-up resistors
• Can be integrated directly into motors
• Standard solution for many applications

Other encoder types available on request.

Please note: The encoders are not available as individual components but only in combination with a drive.
