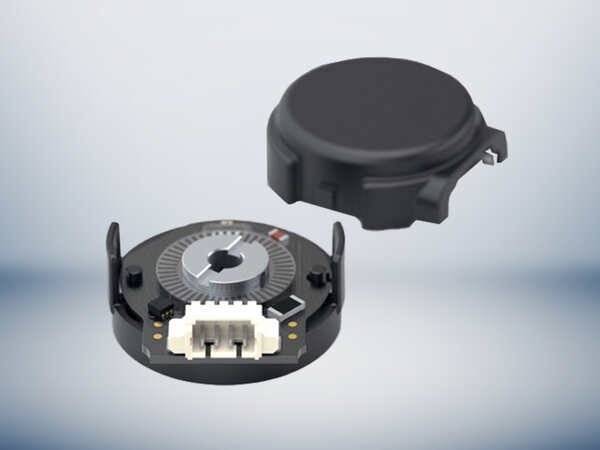

Optical Encoder | E4T Series

Compact miniature optical encoder kit

The E4T miniature transmissive optical encoder is designed to provide digital quadrature encoder feedback for high volume applications where space is limited. The E4T offers high maximum speed and a large drive. The E4T uses an innovative slip-on encoder disk that can accommodate shaft diameters from 2.0 mm to .250 mm. The E4T Series encoder connects via a 4-pin, high-strength, polarised connector with 1.25 mm spacing.

Features

  • Incremental
  • Resolution 100 - 1000
  • Housing ø 22 mm
  • Temperature range -20 to 100 °C

Please note: The encoders are not available as individual components but only in combination with a drive.
