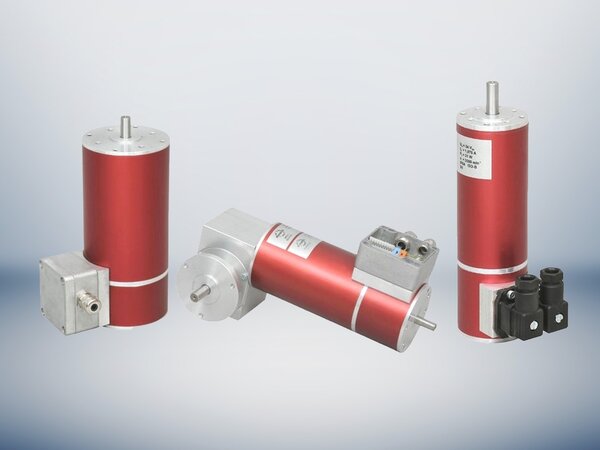

BLDC motors EM with integrated electronics

EM series

3-phase brushless DC motors with integrated 1Q electronics

Functionalities such as change of direction of rotation, speed control and soft start are covered by the electronics and ensure simple commissioning with minimal wiring effort. The EM series is ideally suited for applications with high running smoothness and long service life.

Features

  • Integrated 1-Q control electronics
  • Change of direction of rotation (even from full speed)
  • Speed control via setpoint input (0 to 10 VDC)
  • Current limitation
  • Run-up ramp
  • Enable connection
  • Short-circuit brake
  • Error detection (current limitation, undervoltage)
  • Control range 30:1 (standard: 100 to 3000 rpm)

Options

  • Terminal box
  • With additional functions and internal potentiometer
  • Winding design for short-time operation with higher power possible
  • Protection class up to IP65 (terminal box and screw connections)
  • Adaptations such as shaft outlet, flange, connector assembly, terminal box
  • Attachment of tachometer, resolver, absolute or incremental encoder, brake
