DC motors with integrated electronics | i series

i42DC & i63DC

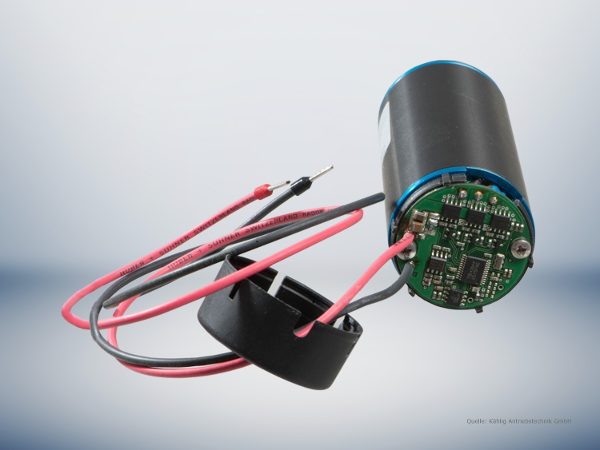

Integrated control electronics for brushed DC motors

Features

  • Suitable for BLDC and/or DC motors
  • Simple plug & play solution
  • Speed and position control
  • Wide range of protocols possible (CANopen, J1939, customised protocols, etc.)
  • Customised firmware possible
  • Integrated absolute encoder *
  • Incremental encoder output with selectable resolution *
  • Quadcount pulse input for high-frequency signal *
  • Adjustable ramps/accelerations
  • Control via bus, analogue or PWM * IP67 option for motor mounting
  • IP67 option for motor mounting
  • 4Q operation *

* except i42LC (see data sheet)

Firmware
The standard firmware of all electronics includes precise control of speed and position. Further requirements can be programmed into the firmware of the electronics according to customer specifications.
Examples of implemented requirements:

  • Damper control controlled via digital inputs
  • Automatic door control with temperature monitoring
  • Target position generator: calculation of motor position based on customer-specific boundary conditions
  • Speed control according to sensor input
  • Input of light barrier pulse signals
  • Input of a load scale via analogue inputs
  • Input of level sensor signal
  • Input of external speed pulse
