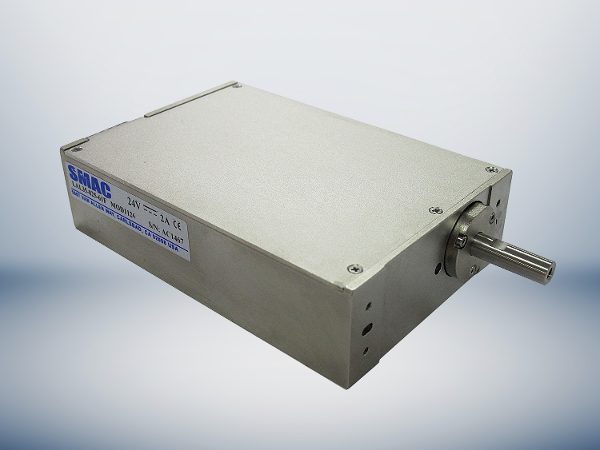

Linear/Rotary Actuators LAR

The linear/rotary actuators combine linear and rotary movement in one unit and are predestined for pick & place and alignment tasks due to the precise Z-theta movement in one actuator. All models also feature a vacuum passage in the piston rod.

The effortless programming of the Z-Theta actuators allow simultaneous control of force/torque, position and speed in all axes, including feedback.
The patented "Softland" can gently land the actuator on sensitive components with a controlled force, preventing damage.

Features

• Softland and precise force/torque control
• Precise positioning
• Encoder resolution linear: 5µm standard resolution, optional: 0.5 µm and 0.1µm
• Encoder resolution rotary: 2000 to 20000 increments
• Vacuum passage in the shaft
• Return spring optionally available
• Long life (>100 million cycles)
